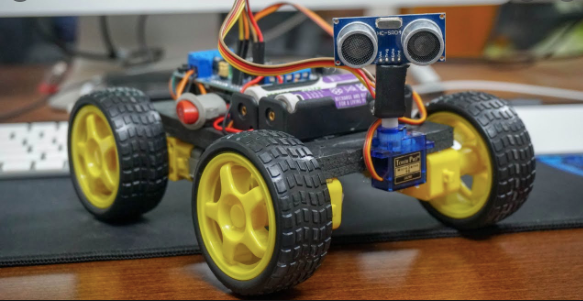

Ultrasonic Obstacle Avoidance Car: Step-by-Step Guide for Beginners
Robotics is a rapidly growing field that blends electronics, programming, and mechanical design to create intelligent machines capable of interacting with their environment. One of the most effective ways for beginners to enter the world of robotics is by building an obstacle-avoiding robot car using Arduino. This project demonstrates how autonomous systems sense surroundings, make decisions, and act accordingly.
In this guide, we will explore the design and operation of an ultrasonic obstacle avoidance car using an Arduino board, an ultrasonic sensor, a servo motor, a motor shield, and DC motors. The focus is not only on assembling the robot but also on understanding how each component contributes to autonomous navigation.
Project Overview
An obstacle-avoiding robot car is designed to move forward automatically and detect objects in its path. When an obstacle is detected within a predefined distance, the robot stops, analyses alternative directions, and changes its movement to avoid collision.
This project uses an HC-SR04 ultrasonic sensor mounted on a servo motor. The servo allows the sensor to rotate left and right, enabling the robot to measure distances in multiple directions. Based on these distance measurements, the robot decides whether to turn left or right.
The Arduino Mega (or Arduino Uno) serves as the controller, executing logic that interprets sensor data and controls motors through a motor shield.

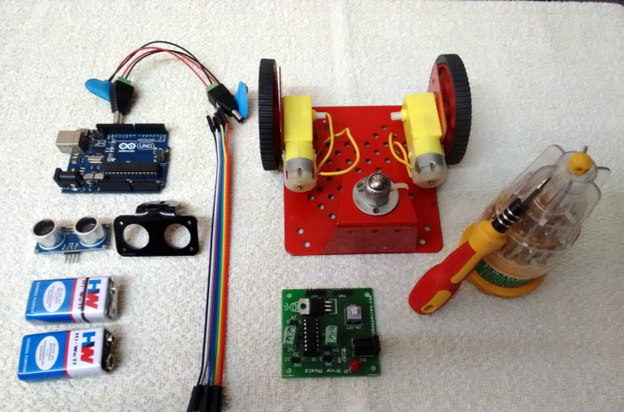

Components and Their Roles
Each component in this project has a specific function that contributes to the robot’s intelligence and mobility.
The Arduino board acts as the central controller. It processes sensor inputs and sends commands to the motors and the servo motor. The HC-SR04 ultrasonic sensor is responsible for distance measurement. It works by sending ultrasonic sound waves and measuring the time taken for the echo to return after hitting an obstacle. The servo motor rotates the ultrasonic sensor to scan different directions. This allows the robot to detect obstacles not only in front but also on the left and right sides.
The motor shield, based on the L293D motor driver, enables the Arduino to control multiple DC motors safely. Since Arduino pins cannot supply enough current to drive motors directly, the motor shield acts as an interface.
DC motors provide movement to the robot, while the chassis supports all components and ensures stability. Separate power supplies for motors and Arduino help prevent voltage drops and system instability.

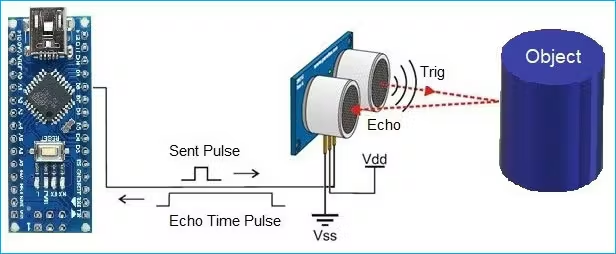

Understanding the Working Principle
The obstacle-avoiding robot follows a simple yet effective logic. The ultrasonic sensor continuously measures the distance between the robot and any object in front of it. If the distance is greater than a safe threshold, the robot continues moving forward.
When the sensor detects an object closer than the defined limit, the robot immediately stops. It then moves backwards slightly to create space. After that, the servo motor rotates the ultrasonic sensor to the right and left, measuring distances in both directions.
The Arduino compares these distances and determines which side has more free space. Based on this comparison, the robot turns in the direction with fewer obstacles and resumes forward motion. This continuous sensing, decision-making, and movement form the core of autonomous navigation.

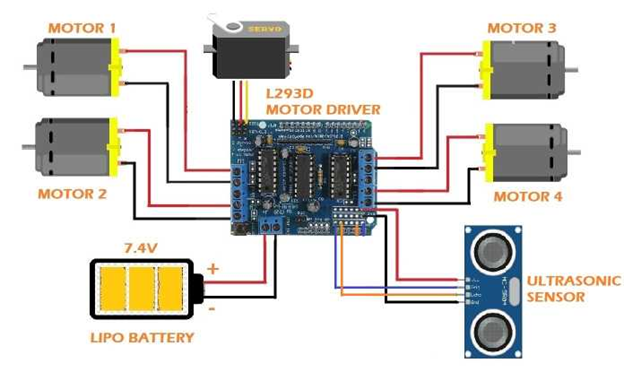

Circuit and Hardware Connections
Correct wiring is essential for the robot to function reliably. The DC motors are connected to the motor shield channels, allowing individual control of each wheel. The motor shield is mounted directly on the Arduino board, simplifying wiring.
The ultrasonic sensor has four pins: VCC, GND, Trigger, and Echo. The Trigger pin sends ultrasonic pulses, while the Echo pin receives the reflected signal. These pins are connected to Arduino analogue pins configured as digital inputs and outputs.
The servo motor is connected to one of the servo ports on the motor shield, typically mapped to a specific Arduino pin. Power connections must be handled carefully to ensure the motors receive sufficient voltage without affecting Arduino stability.
Software Logic and Code Structure
The Arduino program is the brain of the robot. It begins by including necessary libraries for motor control, ultrasonic sensing, and servo operation. These libraries simplify hardware interaction and reduce coding complexity.
Pin definitions specify where sensors and actuators are connected. Motor objects are initialised to control direction and speed, while the ultrasonic sensor object manages distance calculations.
In the setup function, serial communication is initialised for debugging, pin modes are set, the servo motor is attached, and all motors are stopped to ensure a safe start.
The loop function continuously measures distance using the ultrasonic sensor. If the distance is within the obstacle threshold, the robot executes avoidance logic. It stops, reverses, scans left and right, compares distances, and turns accordingly.
Dedicated movement functions such as forward, backwards, left, and right ensure clean and modular code. This structure makes debugging and future modifications easier.

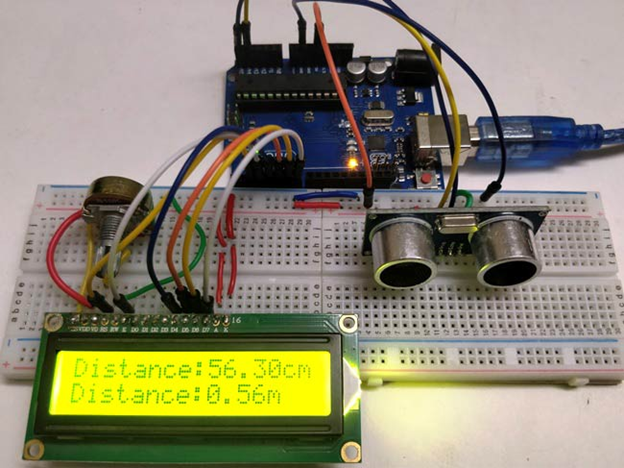

Distance Measurement Using Ultrasonic Sensor
The ultrasonic sensor calculates distance by measuring the time taken for sound waves to travel to an obstacle and back. This time is converted into distance using the speed of sound.
Multiple distance measurement functions are used to scan different directions. These readings help the robot choose the safest path. If no obstacle is detected within the maximum range, the robot assumes the path is clear.
This method is widely used in robotics due to its simplicity and reliability for short-range detection.
Calibration and Troubleshooting
Calibration plays a critical role in accurate obstacle detection. The servo motor must be securely mounted to ensure consistent sensor orientation. Incorrect servo angles can result in inaccurate distance readings.
Motor direction issues are common during initial testing. If the robot moves backwards instead of forward, motor polarity or code direction settings should be checked.
Power supply problems can cause unexpected resets or erratic behaviour. Using separate batteries forthe motors and the Arduino improves stability.
Serial output can be used to monitor distance values and debug decision-making logic during testing.
Enhancements and Future Improvements
Once the basic obstacle avoidance functionality works, the project can be enhanced in several ways. Wireless modules such as Bluetooth or WiFi can enable remote control and monitoring.
Infrared sensors can be added for line following, combining multiple navigation techniques. Camera modules and computer vision can further improve obstacle detection and tracking.
Advanced algorithms such as PID control can be implemented to achieve smoother movement and better turning accuracy.
Final Result and Learning Outcome
After uploading the code and powering the system, the robot moves forward autonomously. When an obstacle appears, it intelligently avoids collision by scanning its surroundings and choosing an alternate path.
This project teaches essential robotics concepts such as sensor integration, motor control, decision-making logic, and real-time system behaviour. It provides a strong foundation for learners who wish to advance into autonomous vehicles, industrial automation, or intelligent robotics systems.
Building an ultrasonic obstacle avoidance car is not just a project—it is a practical introduction to how real-world robots perceive and interact with their environment.
